HS-A4132/110-600-1600 TSM DHO TH MT 1.6H

HS series 4132 high speed machine

• Multi-head embroidery belt with high efficiency • High-speed embroidery brings you high benefits
• High-quality embroidery brings the embroidery to life
• Quiet production brings you a better working environment
• Long service life saves your equipment cost
 Storage capacity

Storage capacity

4 billion needles
 Display

Display

10-inch computer monitor
 Maximum speed

Maximum speed

Maximum speed 1200rpm
  • HS series 4132 high speed machine
  • HS series 4132 high speed machine
  • HS series 4132 high speed machine
  • HS series 4132 high speed machine
  • HS series 4132 high speed machine
  • HS series 4132 high speed machine
  • HS series 4132 high speed machine
  • HS series 4132 high speed machine
  • HS series 4132 high speed machine
  • HS series 4132 high speed machine

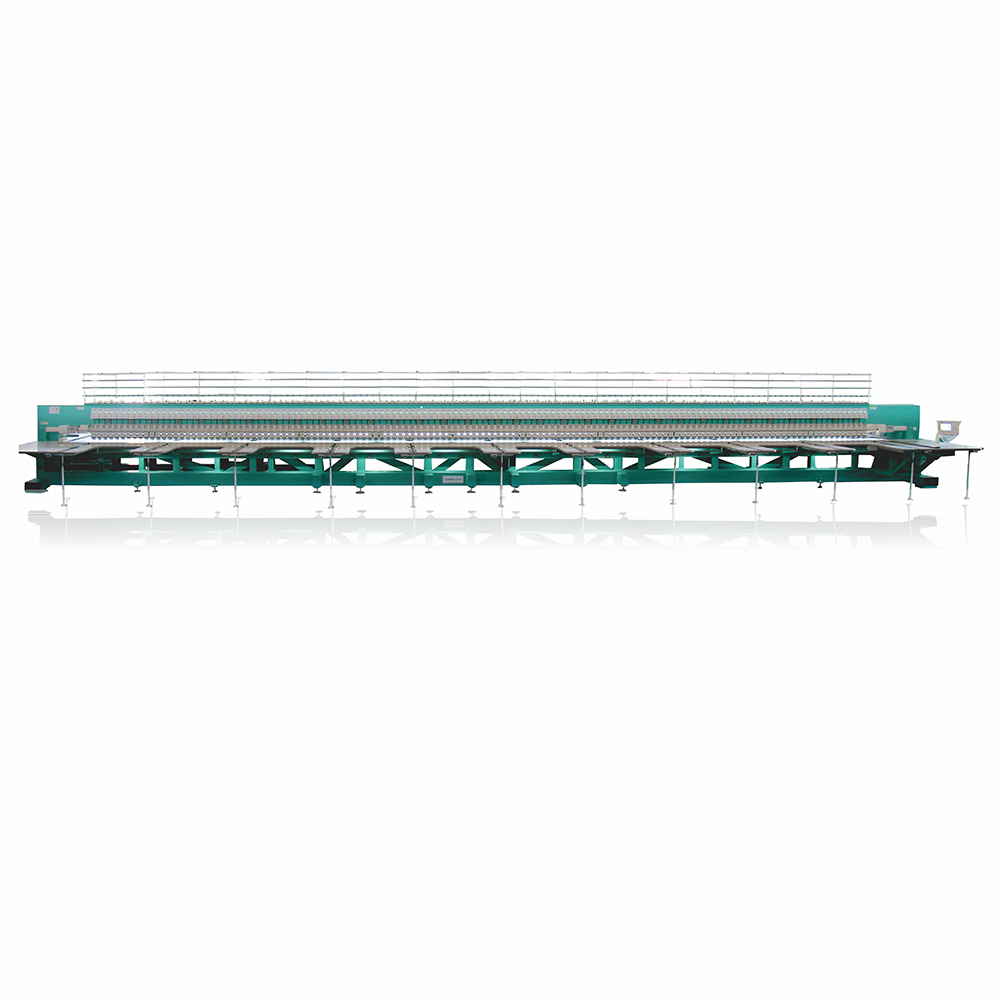

HS series 4132 high speed machine

HS-A4132/110-600-1600 TSM DHO TH MT 1.6H
15-yard super-long battleship, the fighter among embroidery machines
Science and technology are the primary productive forces, and their progress will inevitably promote the development of the machinery industry.
Since 2008, Yuemei has kept pace with the times, innovating existing processes and introducing automated equipment.
With high speed, high efficiency and high quality as the core of innovation, we have developed a new HS model to bring customers an unprecedented experience.
The computer embroidery machine industry has entered the era of high-speed machines. Yuemei high-speed machines have spread all over the country and are exported to the international market.
  • HS series 4132 high speed machine
  • HS series 4132 high speed machine
  • HS series 4132 high speed machine
  • HS series 4132 high speed machine
  • HS series 4132 high speed machine

Product Specifications

Product Series

HS series 4132 high speed machine

Number of needles

Flat embroidery 4 needles

Number of heads

Flat embroidery 132 heads

Head spacing

110mm

Embroidery area

X600-Y1600mm

Length, width and height

L11300-W2150-H1875mm

net weight

18.2 tons

Machine configuration 1

Power supply voltage

380V50--60HZ

Maximum speed

1200rpm

Electronic control system

Yuemei customized Dahao fully automatic computer control system

Input method

U disk, USB interface input

Drive mode

Full servo motor

computer

10-inch display

Storage capacity

4 billion stitches, 200+ patterns

Machine Configuration 2

Thread cutting

Stepper motor thread trimmer

Innovative features

Semi-automatic oiling and thread clamping of upper and lower axes

Rotary hook

High-speed rotary hook imported from South Korea

Applicable embroidery method

Ordinary flat embroidery, gold piece embroidery, simple rope embroidery, relief embroidery, water-soluble embroidery and other embroidery methods

Supported languages

23 languages including Simplified Chinese, English, Hindi, Arabic, French, Spanish, Portuguese, Russian, Turkish, etc.

The following are the models that customers often make, Yuemei can provide you with customized models

Device optional Configuration optional
Automatic bottom thread changing device High-speed sequin device 15-inch display Machine head motor jump function
1.6 times larger hook High-speed cording device TAJIMA wire break alarm clamp Embroidered embroidery frame
- Red light positioning device Motor thread trimming function -
- - - -

Number of needles model Number of heads Needle spacing Embroidery area (horizontal) Embroidery area (vertical) Length (mm) Width (mm) Heightmm
3/4 HS 132 110 600 920/1600 17200 3950 2050
3/4/6 HS 90 165 650 920/1600 17500 3950 2050
4/6/9 HS 68 220 650 920/1600 17600 3950 2050
